Fiber cores | Overall diameter(mm) | Nominal weight(kg/km) | Min. bending radius(mm) |
2 | 1.15 | 1.0 | 50 |
4 | 1.15 | 1.0 | 50 |
6 | 1.35 | 1.3 | 60 |
8 | 1.5 | 1.8 | 80 |
12 | 1.65 | 2.2 | 80 |
Features and Benefits
- 2、4、6、8 and 12 fibers options.
- Stable structure, good mechanical and temperature performance.
- Designed with special grooves to advance blowing distance.
- Lightweight and proper stiffness , repeat installation.
- Designed with no gel, easy stripping and handling.
Application
- Duct installation
Transmission Performance
- Compliance with all table ITU-T G.652
- Or any request
Specification
- TIS 2166-2548
- IEC 60793, IEC60794
- TIA/EIA
- ITU-T
Packaging and Shipping Information
- Standard length 4,000 m or other cable length may be available upon request

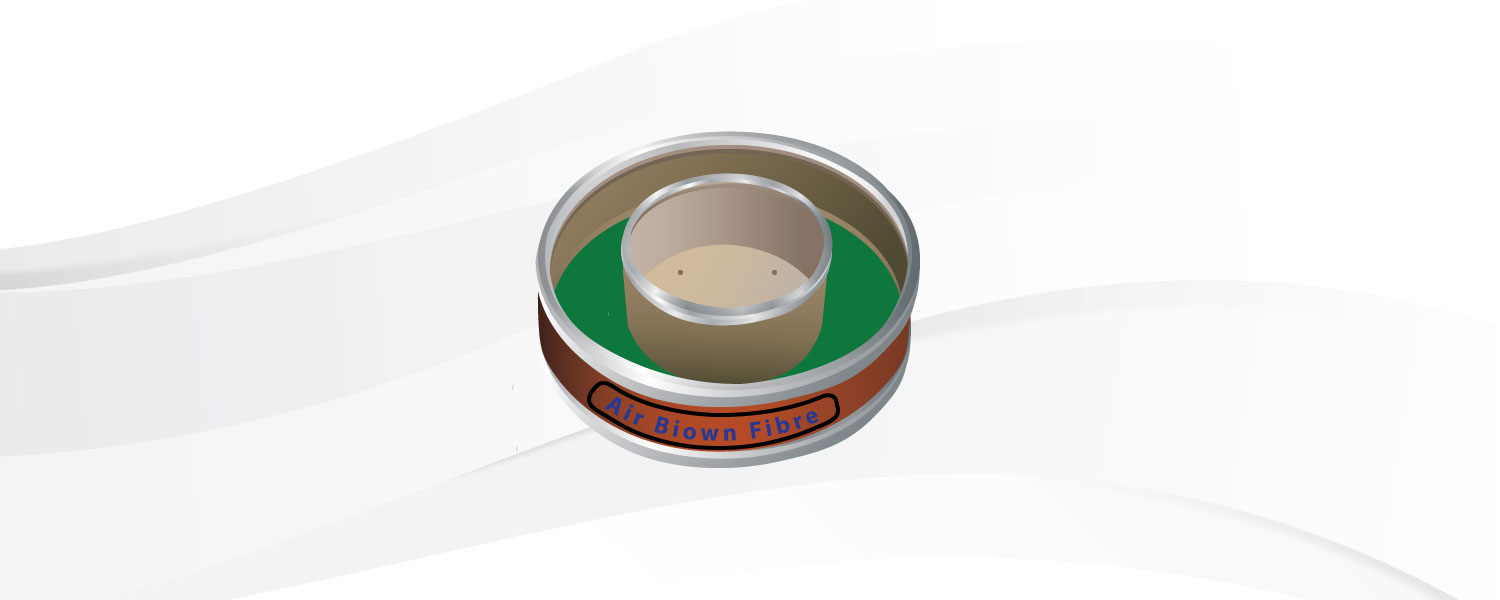

- Free coiling in the pan.
Environmental Characteristics
- Operating Temperature -30 to +70 °C
